Renesas RZ/G2UL vs NXP i.MX6 UL/ULL/ULZ

Background

The purpose of the article is to provide an in-depth overview and comparison between the NXP i.MX6 UL/ULL/ULZ and Renesas RZ/G2UL SOCs for industrial, IoT and embedded type applications. The article should provide a good reference for design considerations while planning your next gen application or project and will provide an overview about multiple areas such as key technology, interfaces, power consumption, longevity and more.

The NXP i.MX6 UL and Renesas RZG2UL are both microcontrollers (MCUs) that are designed for use in a variety of embedded systems. They are both microprocessors that are used to control and coordinate the operation of other devices and systems.

The NXP i.MX6 UL is a 32-bit microcontroller that is based on the Cortex-A7 processor core. It is designed for use in low-power applications, and is optimized for low power consumption. It is available in a range of configurations, with options for different numbers of processor cores, memory sizes, and other features.

The Renesas RZG2UL is a 64-bit microcontroller that is based on the Cortex-A55 processor core. It is designed for use in low to mid-performance applications, and is capable of handling more complex tasks and workloads. It is available in a range of configurations such as memory sizes, and other features.

In terms of performance, the Renesas RZG2UL is generally considered to be faster and more powerful than the NXP i.MX6 UL, due to its use of the Cortex-A55 processor core. However, the NXP i.MX6 UL may be a better choice for low-power applications due to its lower power consumption.

Both the NXP i.MX6 UL and Renesas RZG2UL are widely used in a variety of embedded systems, including industrial automation systems, medical devices, and consumer electronics. They are both capable of handling a range of tasks and workloads, and are suitable for use in a variety of applications.

Cortex A7 vs Cortex A55

The Cortex-A7 and Cortex-A55 are both processors designed by ARM Holdings for use in a variety of devices, including smartphones, tablets, and other embedded systems. They are part of ARM's Cortex-A series of processors, which are designed for use in high-performance applications that require fast processing and low power consumption.

The Cortex-A7 is an older processor designed for use in entry-level devices. It is a relatively small processor, with a die size of only 0.5 mm², and is optimized for low power consumption. It is a 32-bit processor, meaning it can process data in 32-bit chunks, and is capable of running at clock speeds of up to 1GHz.

The Cortex-A55 is a more recent processor that is designed for use in a low to mid-range devices. It is a 64-bit processor, meaning it can process data in 64-bit chunks, and is capable of running at clock speeds of up to 2.0 GHz. It is a more powerful processor than the Cortex-A7, and is able to perform more complex tasks and handle more demanding workloads.

In terms of performance, the Cortex-A55 is generally considered to be significantly faster and more powerful than the Cortex-A7. It is able to handle more complex tasks and workloads, and is better suited for use in devices that require more processing power, such as industrial devices and GUI applications.

Here is a summary table with key differences between the technologies;

Feature	Cortex-A7	Cortex-A9	Cortex-A55
Processor architecture	32-bit	32-bit	64-bit
Instruction set	ARMv7-A	ARMv7-A	ARMv8-A
Multithreading	No	Yes	Yes
Manufacturing process	40nm	40nm	28nm
Performance	Entry-level	Mid-range	High-performance
Power consumption	Low	Moderate	Higher
Suitable applications	Low-power	Mid-range	High-performance
Cache size	L1: 32 KB, L2: 256 KB	L1: 32 KB, L2: 256 KB	L1: 32 KB, L2: 512 KB
Pipeline depth	7-stage	9-stage	13-stage
SIMD instructions	NEON	NEON	NEON
Floating point unit	VFPv4	VFPv4	VFPv4
Security features	TrustZone	TrustZone	TrustZone

High Level Overview

Below is a summary table of the key features and differences between the platforms.

Feature	Renesas RZG2UL	NXP i.MX6 Solo	NXP i.MX6 ULL	NXP i.MX6 UL	NXP i.MX6 ULZ
Processor architecture	64-bit	32-bit	32-bit	32-bit	32-bit

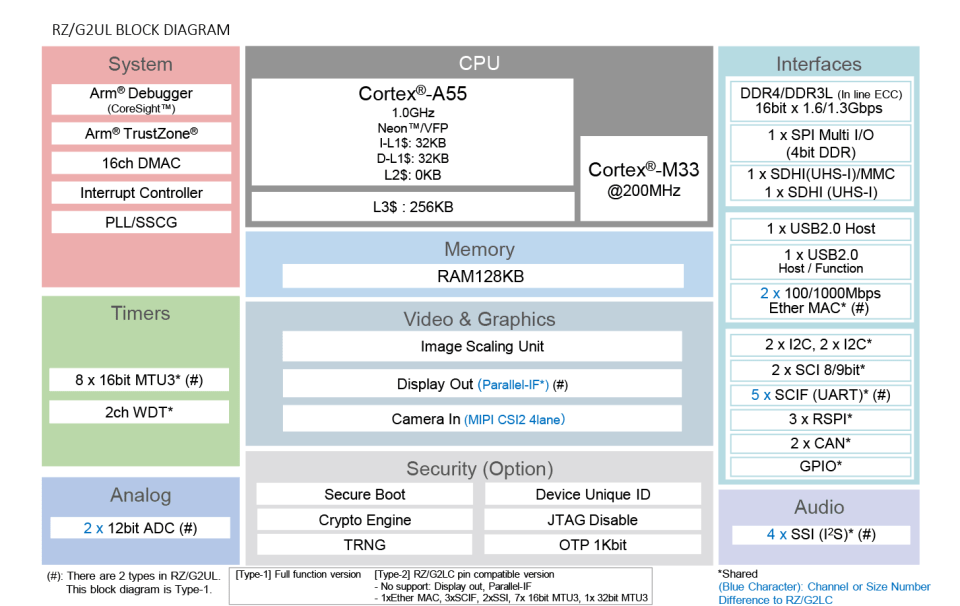

Block Diagram	Click Here	Click Here	Click Here	Click Here	Click Here
Maximum clock speed	up to 2.0 GHz	up to 1.0 GHz	up to 1.0 GHz	up to 1.0 GHz	up to 1.0 GHz
Performance	High-performance	Entry-level	Entry-level	Entry-level	Entry-level
Power consumption	Higher	Low	Low	Low	Low
Suitable applications	High-performance	Low-power	Low-power	Low-power	Low-power
Processor core	Cortex-A55	Cortex A9	Cortex-A7	Cortex-A7	Cortex-A7
Instruction set	ARMv8-A	ARMv7-A	ARMv7-A	ARMv7-A	ARMv7-A
Multithreading	Yes	No	No	No	No
Security features	TrustZone, CryptoCell-310	TrustZone	TrustZone	TrustZone	TrustZone
Manufacturing process	28nm	40nm	40nm	40nm	40nm
Transistor count	Approximately 3.3 billion	Approximately 1 billion	Approximately 1 billion	Approximately 1 billion	Approximately 1 billion
Memory options	DDR3/DDR4 SDRAM, QSPI Flash	DDR3/DDR3L SDRAM, NAND Flash	DDR3/DDR3L SDRAM, NAND Flash	DDR3/DDR3L SDRAM, NAND Flash	DDR3/DDR3L SDRAM, NAND Flash
Peripherals	Ethernet, USB, CAN, UART, I2C, SPI	Ethernet, USB, CAN, UART, I2C, SPI	Ethernet, USB, CAN, UART, I2C, SPI	Ethernet, USB, CAN, UART, I2C, SPI	Ethernet, USB, CAN, UART, I2C, SPI
Operating temperature	-40°C to 105°C	-40°C to 85°C	-40°C to 85°C	-40°C to 85°C	-40°C to 85°C
Package options	LQFP, LFBGA	LQFP, BGA	LQFP, BGA	LQFP, BGA	LQFP, BGA
Supported operating systems	ThreadX, Linux	Linux, Android, QNX	Linux, Android, QNX	Linux, Android, QNX	Linux, Android, QNX
Year Launched	2022	2012	2015	2016	2018
Longevity	2032	2035	2035	2031	2028
Pricing	From $25	From $45	From $25	From $25	From $25

SolidRun offers Renesas RZ/G2LC and RZ/G2UL based SOMs with more information available here. A detailed hardware user guide is available here.
